Double Convoluted Truck Air Spring For Weforma WBE400-E1 FD200-19

  • 1
  • 2

Brand Name : Yiconton

Model Number : 2B 5238

Certification : IATF16949

Place of Origin : China

MOQ : 1 piece

Price : Negotiate

Payment Terms : T/T

Supply Ability : 500pieces/Month

Delivery Time : 5-8 Work Days

Packaging Details : Carton

Main Material : Rubber+Metal

Product name : Double Convoluted air spring

Net weight : 3.628 kg

Package dimension : 25*25*25.5 mm

Bellows Type : Double Convoluted

Cross references : FD200-19/2682042000

Operation : Gas-filled

Plate Dia : 160mm

Contact Now

Double Convoluted truck air spring for Weforma WBE400-E1 FD200-19



Cross references
Contitech
FD200-19/2682042000
Bosch
822419043
Festo
EB-250-185
Norgren
PM/31092
Original parts
Weforma
WBE400-E1


Technical parameters
  • Nut/blind nut
Top plate screw (nut) teeth: 2XM8×1.25
The screw center distance of the top cover plate: 89mm
Screw (nut) teeth of the bottom cover plate: 2XM8×1.25
The screw center distance of the bottom cover plate: 89 mm
  • Air hole/air inlet/air fittings
Air hole/air inlet: G3/4
The distance between the air hole and the screw: 38mm
  • Cover plate
Top plate diameter: 160 mm
Diameter of the bottom cover: 160 mm
  • Bell rubber bellows
Rubber Bellow Diameter: 224mm
Max Diameter: 251mm
Stroke: from 75mm to 260mm


What is the purpose of an air spring?


An air spring is basically a column of air confined within a rubber-and-fabric container shaped like a bellows. The spring action results from the compression and expansion of the air. When used on road vehicles, air springs can keep the vehicle at a constant standing height regardless of load.



Note for double convoluted air spring


Firestone double convoluted air springs DO NOT require a bumpstop to avoid damage, however, your specific application MAY require a bumpstop to maintain a safe ground clearance when deflated.



Company History



Our company has been manufacturing air suspensions since 2004. We've learned a lot about what makes a great air suspension and how to make them. Since 2009, We have started cooperating with OEM (Original equipment manufacturer). In 2010, we manufactured air pumps as well as solenoid valve blocks. In 2016, we became an automatically integrated factory.
Now, YICONTON has become the most considerable manufacturer of air suspensions in Asia. Our products have been imported worldwide, mainly in North America.

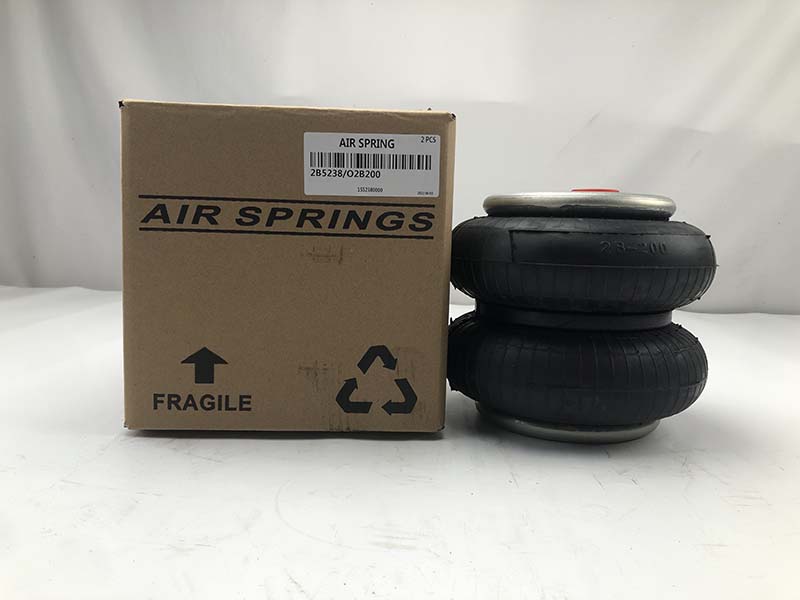

Product picture

Double Convoluted Truck Air Spring For Weforma WBE400-E1 FD200-19
